SVM-2L CNC Milling Machine

Dynamic Announcement:
**AC SERVO spindle motor & BT30-12Tool ATC is also optional for SVM-2L
**Linuxcnc&MESA controller optional

Ex Work Price:$ inquire
Please contact us or our distributors for price and shipping cost.
Download Documents
SVM-2 series datasheet
Vist Our Youtube Channel
Email Us for More Info
info@skyfirecnc.com

Introduction Specifications Upgrades/Options Photo Gallery Application Demos

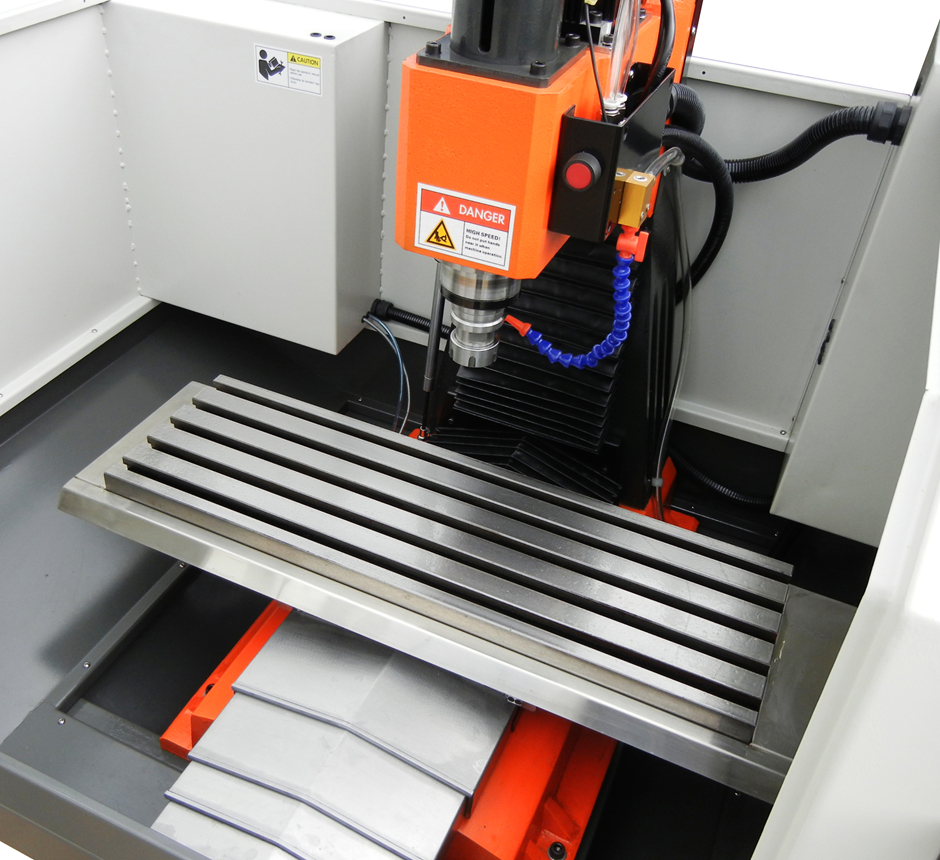

SVM-2L is the entry type of SVM-2 series. It's an easy start PC control based Mini Vertical Milling CNC. It’s of economic price but its machine frame is still made as standard industrial level VMC. It's equipped with our own developped powerful BLDC spindle motor system, full linear ways and closed stepper motor motion system. Compared with common small CNC machines, SVM-2L still have super advantage on motion features. We aim to provide a perfect strong machine with lower budget and keep big potential to upgrade in the future with AC SERVO spindle and ATC etc.

SVM-2L
comes with MACH3 supporting 4 axis USB CNC controller installed on a 14" touch panel tablet industrial computer. Indeed MACH3 controller is not of high level solution but it's very easy to start with for CNC beginners. We also provide ATC solution for it based on MODBUS control. In the future, users can upgrade to better controller solution easily or directly choose the upgrade option from MACH3 to Linuxcnc with MESA from us.



SVM-2L can handle all materials from Plastic, Aluminium, Brass, Steel, Stainless Steel to Taitanium etc. It's a real industrial level CNC machine to do precision machining works. Typical machining tolerance is <0.02mm.

SVM-2L
is excellent and economic for CNC starters, personal machinists, metal workshops, R&D departments, educations etc. But for batch production manufacturers, we suggest to choose SVM-2VMC or SVM-2VMC Workstation type.

KEY FEATURES
High rigid cast iron machine frame
Over 500kgs aging-treated cast iron frame to prevent losing accuracy by time

Full linear ways and C3 class ground ballscrews for all 3 axis
HIWIN™ High precision class linear ways and C3 class ground ballscrews for all 3 axis / Z axis enhanced with heavy duty roller type linear ways

BLDC motor driving BT30 spindle system with Pneumatic PDB
Industrial precision BT30 spindle unit / High power BLDC spindle motor system

Closed loop stepper 3 axis driving system
Compared to common open loop steppers, closed loop steppers are faster, more smoothly and alarm if losing step under extrame conditions

MACH3 USB controller+touch screen PC based CNC control system
Front industrial touch screen tablet computer / Keyboard attached / MACH3 4 axis controller with USB port

Half enclosure and integrated coolant&chip removing system
Industrial style half enclosure / Chip drand coolant system built in cabinet stand / Easy moving FOOT MASTER casters

2nd High speed engraving spindle (optional)
Special optional 2nd engraving spindle for precision 3D engraving works

Harmonic drive 4th/5th axis system (optional)
High accuracy, Zero backlash 4th/5th axis set attachable

BT30-ATC-12T is now available on SVM-2 (optional)
SKYFIRE own developped BT30-12T ATC system / Less weight, full linear ways, optimized for small CNC (mubst be together with AC SERVO spindle upgrade)

Various optional installations, upgrades, tooling and accessories (Please refer to datasheet)
MPG, tool setters, BT30 tool holder series, machine tools etc.


QUALITY CONTROL
All SKYFIRE CNC machines will be tested on motion accuracy  and kept running over 72 hours after assembly.

REAL CUT TESTS
All machines will be applied with real cuts to exam machining accuracy before cleaning up, packing and shipment.


PACKAGE & SHIPMENT
All SKYFIRE CNC machines will be packed up with standard plywood crates to make sure safe transport.


We also provide CNC programming, client sample  test machining sevices to make sure customers can do right job with our machnes.


OPTIONS & TOOLING ACCESSORIES
Please refer to SVM-2 series DATASHEET for more machine options and high quality tooling accessories available. Order together with machine will save a lot for you!

KNOW MORE
More questions please refer to FAQ or directly email us for prompt answers: info@skyfirecnc.com

WARRANTY & SERVICES
We provide 12 month full free quality warranty and life long technology supports. Please review details in:
Warranty & Services document
