SVM-1S CNC Milling Machine

Dynamic Announcement:
**New 2017 version SVM-1S avaliable!
**Linuxcnc&MESA controller optional

Ex Work Price:$ inquire
Please contact us or our distributors for price and shipping cost.
Download Documents
SVM-1 series datasheet
Vist Our Youtube Channel
Email Us for More Info
info@skyfirecnc.com

Introduction Specifications Upgrades/Options Photo Gallery Application Demos

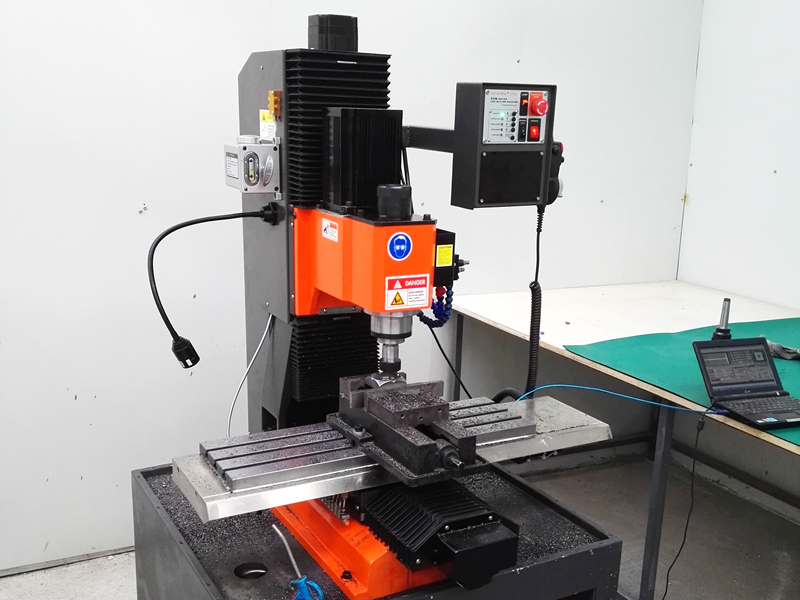

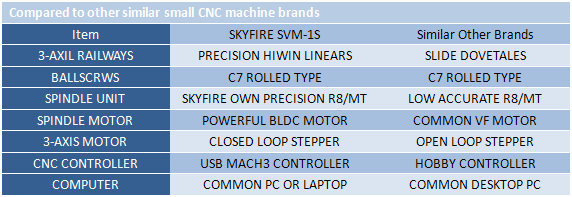

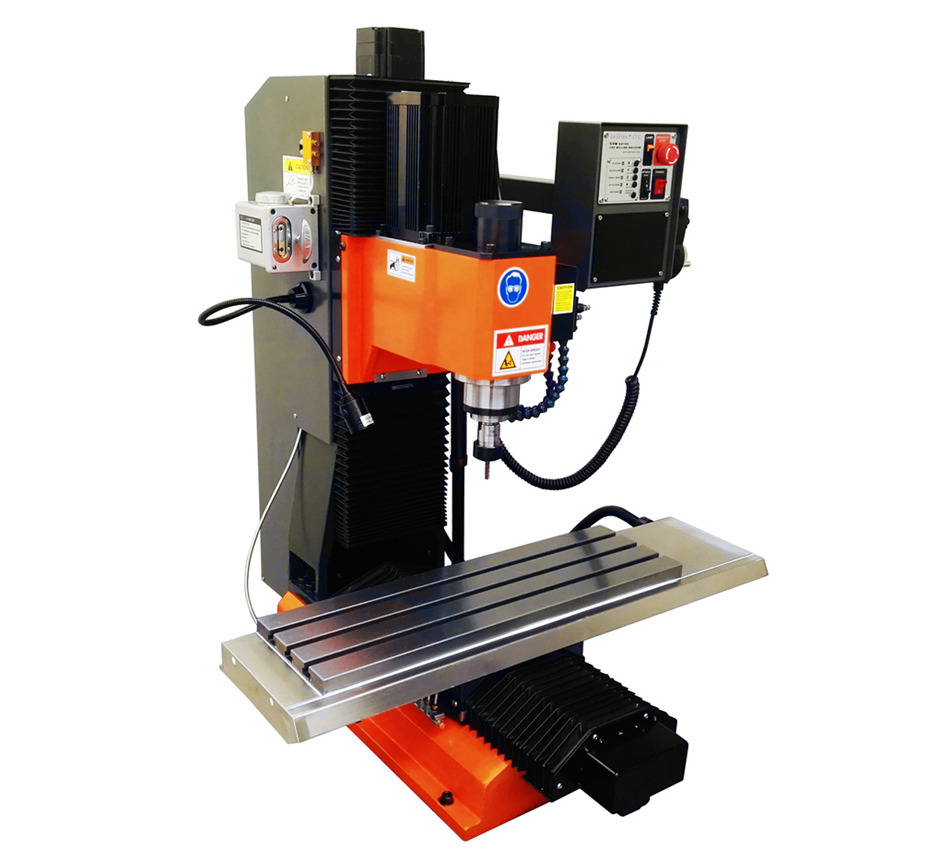

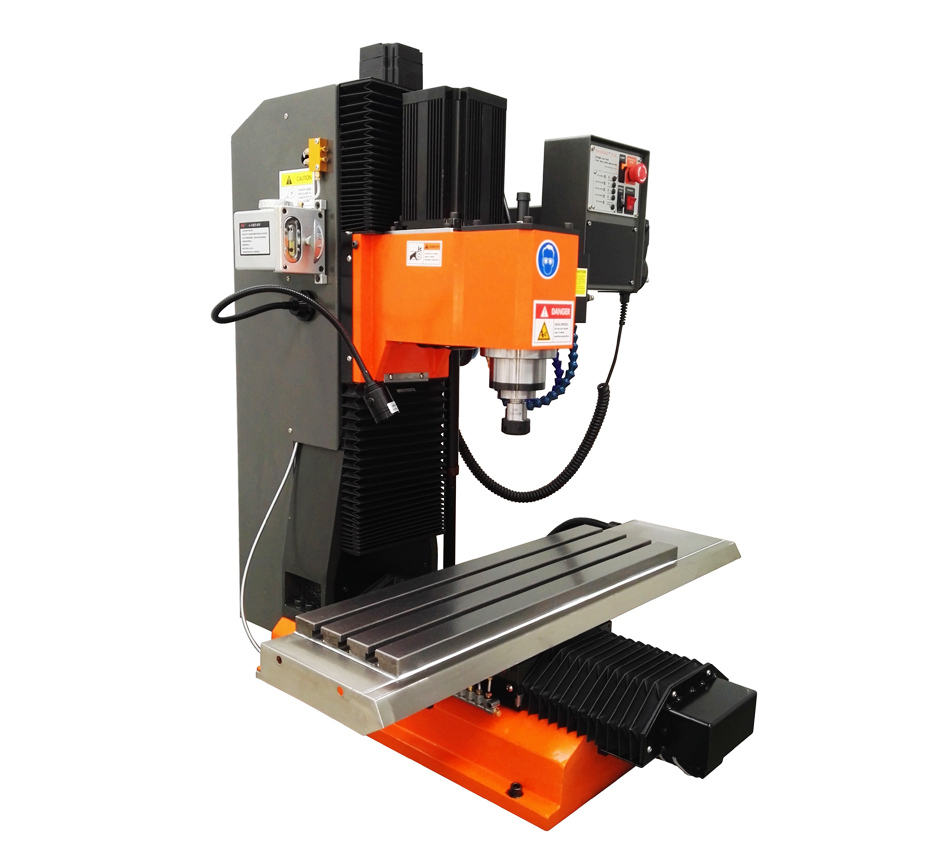

SVM-1S is the entry level benchtop CNC of SVM-1 series. It's an easy start PC control based Mini Vertical Milling CNC. It’s of hobby size and economic price but it's still made at industrial level standard to do real cutting works. It's equipped with our own developped powerful BLDC spindle motor system, full linear ways and closed stepper motor motion system. Compared with common small CNC machines, SVM-1S still has super advantage on motion features. We aim to make SVM-1S a perfect benchtop size machine with lower budget but can do any real precision cutting works.

SVM-1S

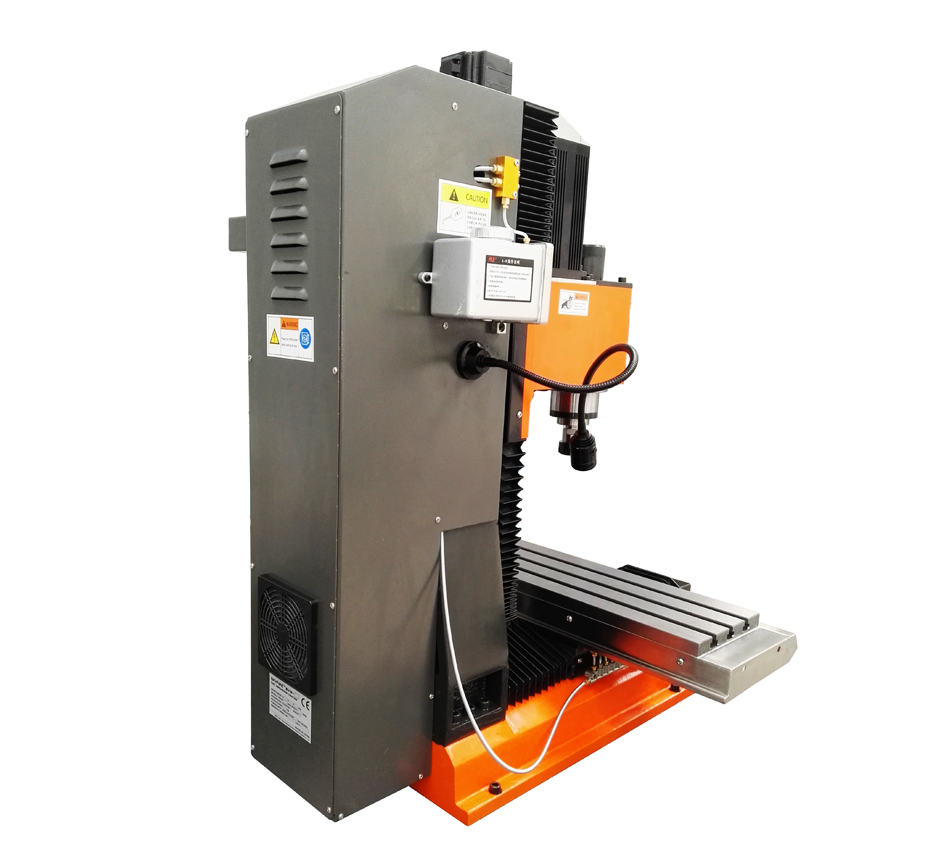

comes with MACH3 supporting 4 axis USB CNC controller installed. Indeed MACH3 controller is not of high level solution but it's very easy to start with for CNC beginners. We also provide upgraded controller options such as Linuxcnc with MESA controller. SVM-1S has large electric box on the back and reserved the rooms for 4th/5th axis add on.

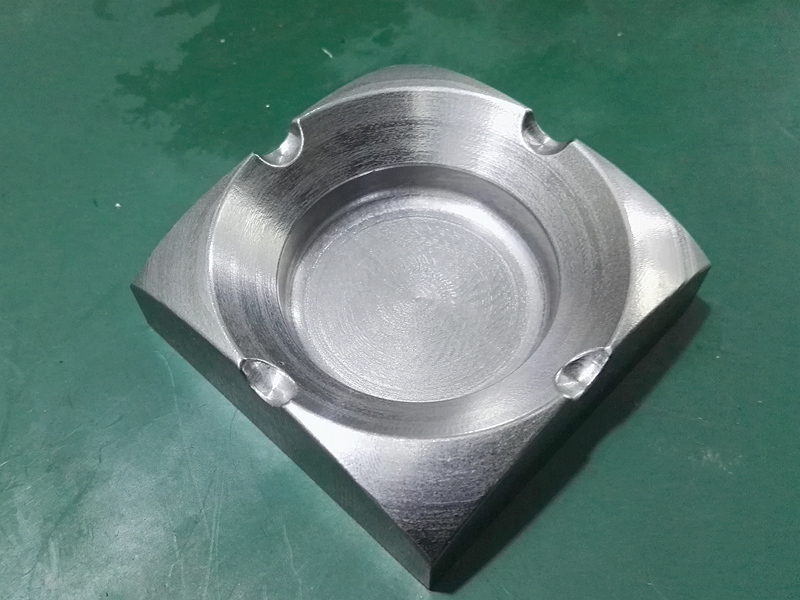

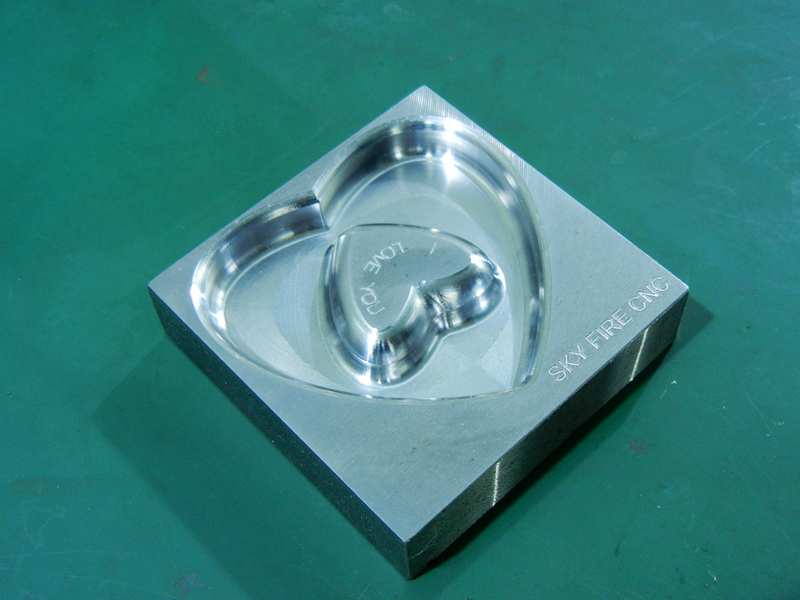

SVM-1S can handle all materials from Plastic, Aluminium, Brass, Steel, Stainless Steel to Taitanium etc. It's a real industrial level CNC machine to do precision machining works. Typical machining tolerance is <0.02mm.

SVM-1S
is excellent and economic for CNC starters, personal machinists, metal workshops, R&D departments, educations etc. But for batch production manufacturers, we suggest to choose SVM-1VMC or SVM-2VMC types.

KEY FEATURES
High rigid cast iron machine frame
Over 250kgs aging-treated cast iron frame to prevent losing accuracy by time

Full linear ways and C7 class ballscrews for all 3 axis
HIWIN™ High precision class linear ways and C7 class ground ballscrews for all 3 axis (C3 class ballscrews optional)

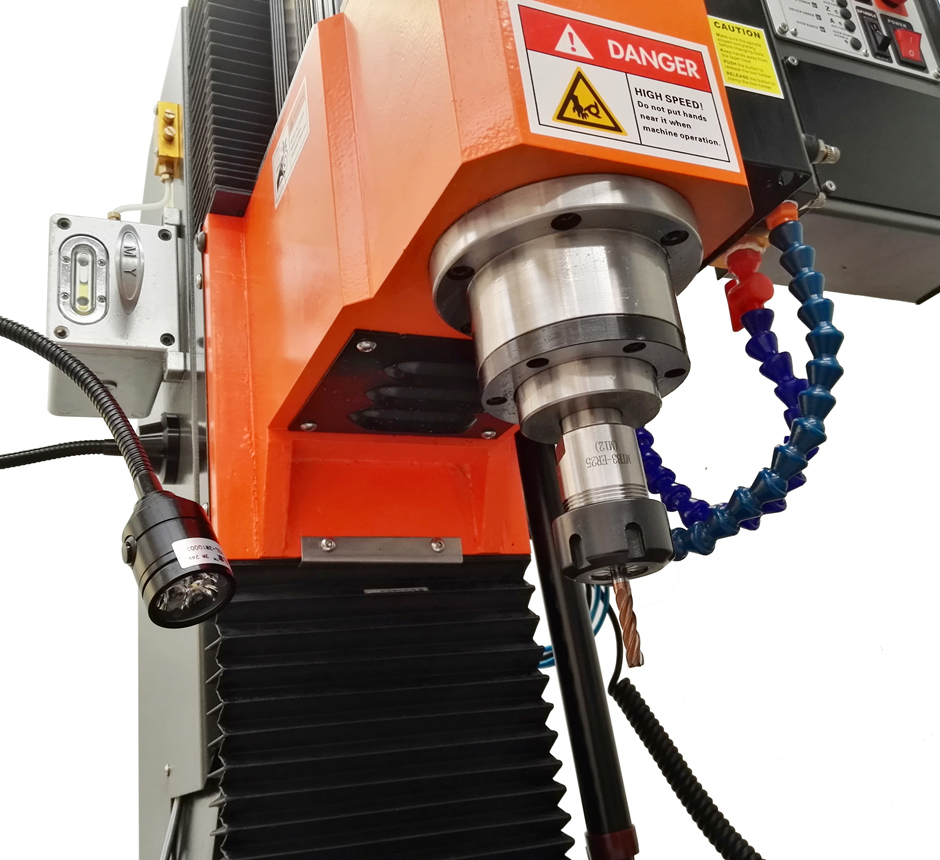

BLDC motor driving MT3/R8 spindle system
Skyfire own made high precision, high speed MT3/R8 series spindle units / High accuracy with <0.003mm taper run out / High power BLDC spindle motor system

Closed loop stepper 3 axis driving system
Compared to common open loop steppers, closed loop steppers are faster, more smoothly and alarm if losing step under extrame conditions

MACH3 USB controller+touch screen PC based CNC control system
Front industrial touch screen tablet computer / Keyboard attached / MACH3 4 axis controller with USB port


2nd High speed engraving spindle (optional)
Special optional 2nd engraving spindle for precision 3D engraving works

Harmonic drive 4th/5th axis system (optional)
High accuracy, Zero backlash 4th/5th axis set attachable

Various optional installations, upgrades, tooling and accessories (Please refer to datasheet)
MPG, tool setters, R8/MT3 tool holder series, machine accessories, tools etc.





QUALITY CONTROL
All SKYFIRE CNC machines will be tested on motion accuracy  and kept running over 72 hours after assembly.

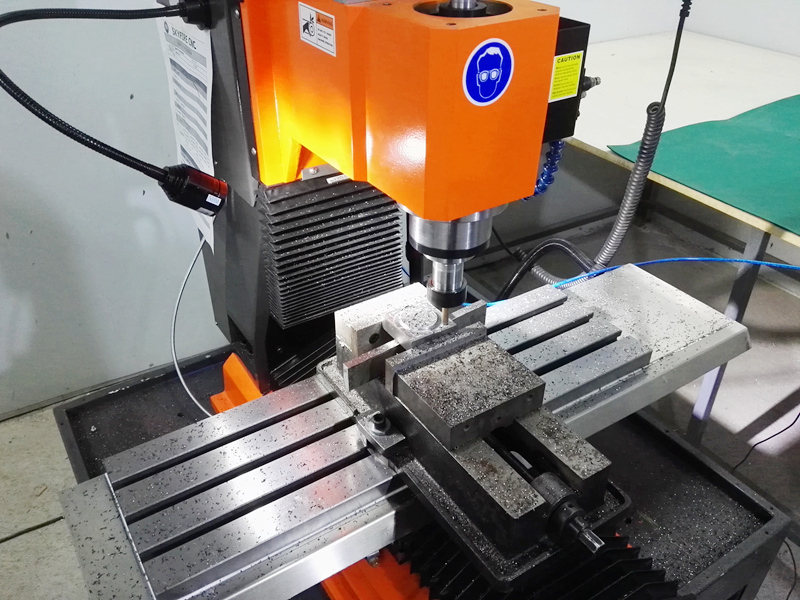

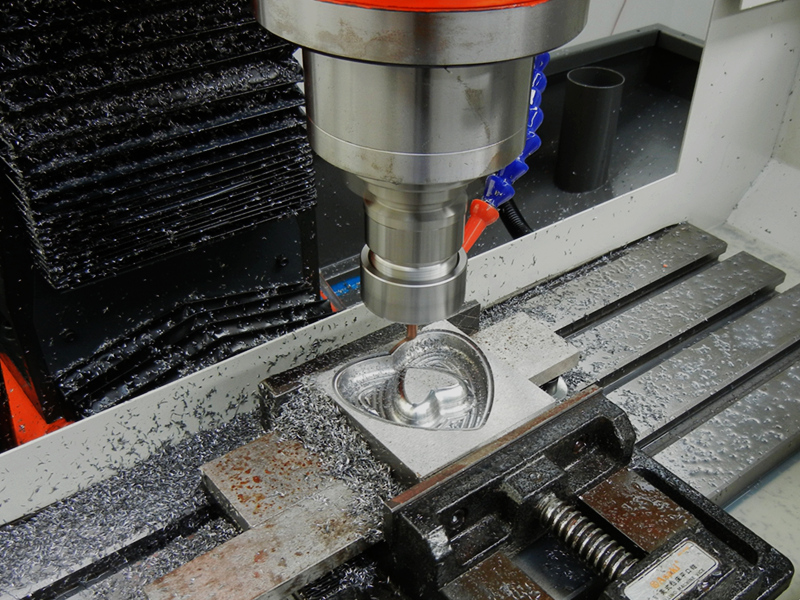

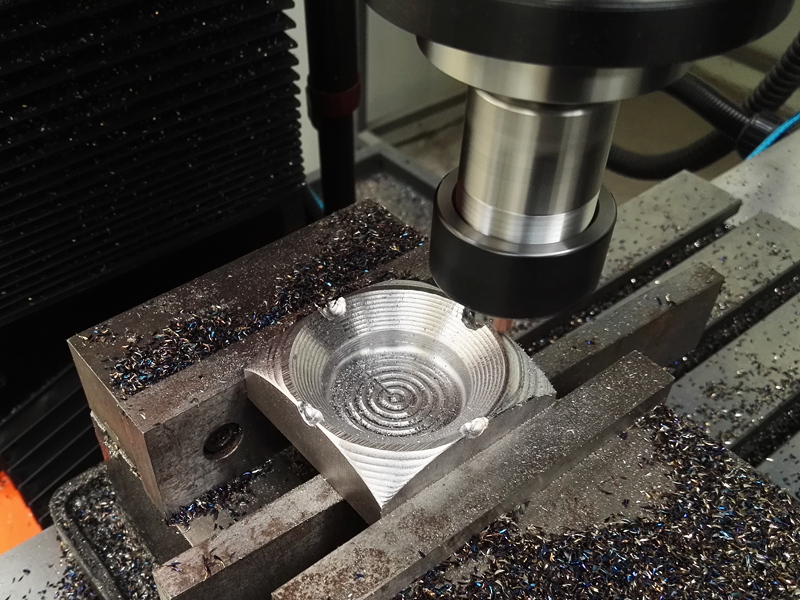

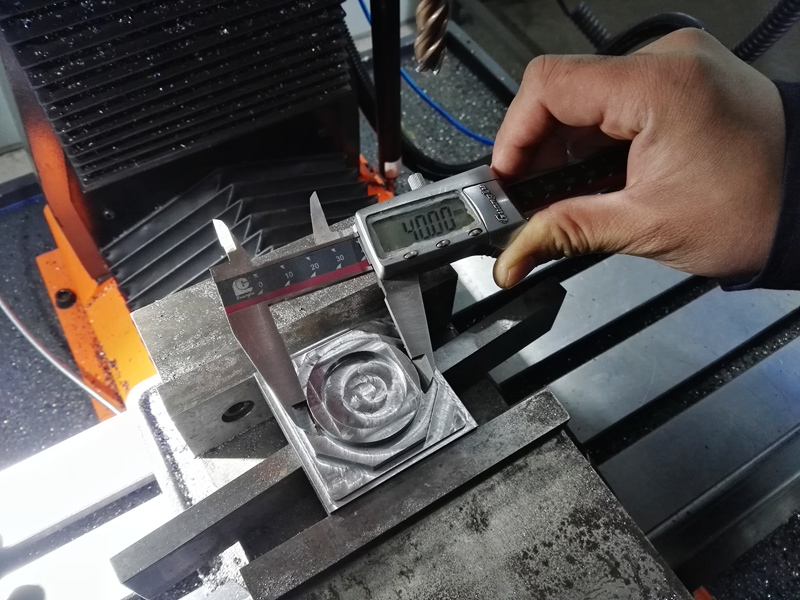

REAL CUT TESTS
All machines will be applied with real cuts to exam machining accuracy before cleaning up, packing and shipment.


PACKAGE & SHIPMENT
All SKYFIRE CNC machines will be packed up with standard plywood crates to make sure safe transport.


We also provide CNC programming, client sample  test machining sevices to make sure customers can do right job with our machnes.


OPTIONS & TOOLING ACCESSORIES
Please refer to SVM-1 series DATASHEET for more machine options and high quality tooling accessories available. Order together with machine will save a lot for you!

KNOW MORE
More questions please refer to FAQ or directly email us for prompt answers: info@skyfirecnc.com

WARRANTY & SERVICES
We provide 12 month full free quality warranty and life long technology supports. Please review details in:
Warranty & Services document
