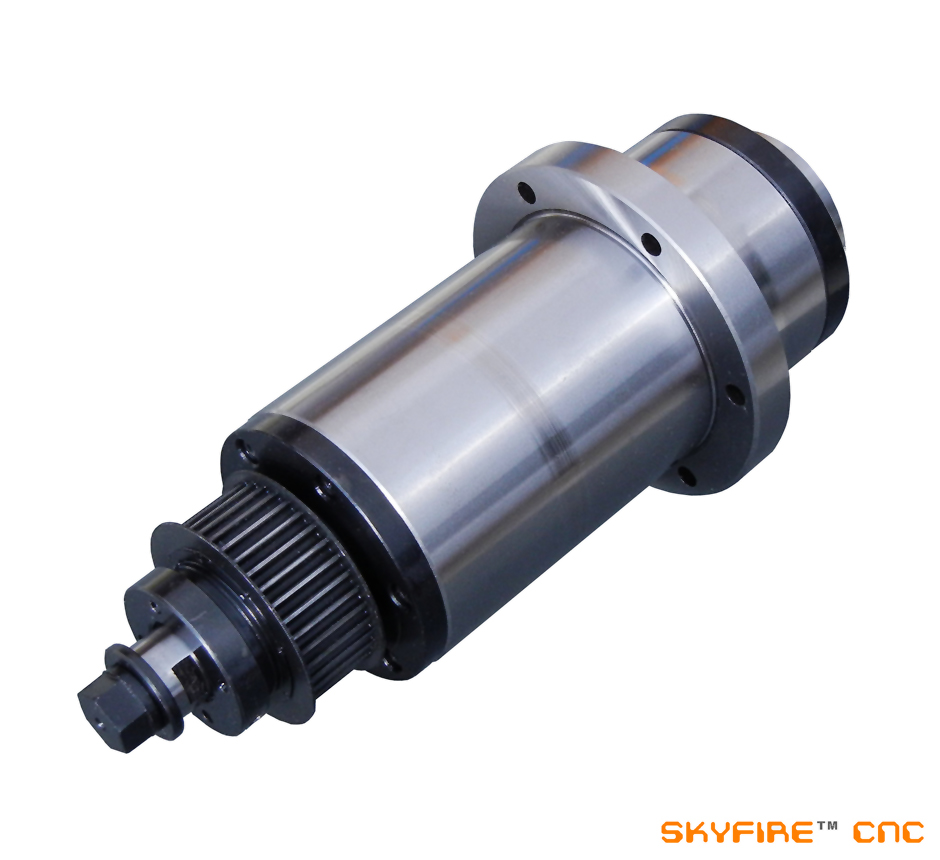

R8-80 Spindle Unit
Sstandard R8 spindle unit.
MAX6000RPM/10000RPM optional.
Run out<0.003mm.
0.8G Dynamic balanced.
Support R8-QTC system.
Ex Work Price:$ inquire
Please contact us or our distributors for price and shipping cost.
Download Documents
Vist Our Youtube Channel
Email Us for More Info
info@skyfirecnc.com

Introduction Specifications Upgrades/Options Accessories Package&Shipping

Skyfire R8-80 spindle unit is our own designed for SVM series CNC machines. It shows stable performance after long time usage on our machines.

It contains 2 grounp (total 4pcs) angular contact bearings following the most popuar high speed spindle unit design. Large bearing design makes the R8-80 spindle unit be able to support heavy duty cutting applications. Both ends of the spindle have labyrinth seal structure.

Every spindle unit is precisely assembled and run in.  Every spindle passed dynamic balancing process.

Main Features:

Standard R8 Taper

MAX6000RPM / 10000RPM version optional

Run out<=0.003mm

Dia.80mm body

0.8G Dynamic balanced

Support R8-QTC System

HTD-5M-36T Belt Gear
