SVM-2VMC is a professional Mini Industrial Vertical Milling CNC. It’s small compact size but all made as standard industrial level VMC. It's equipped with standard industrial AC SERVO driving BT30 spindle, full linear ways and full AC SERVO 3 axis motion system that normally only be seen on big industrial CNC machines.

SVM-2VMC
comes with Standard 4 axis (5 axis version optional now!) industrial CNC controller with additional control panel. Unlike other PC based CNC controllers, Industrial CNC controller is much more professional and powerful. Industrial controller is a full closed system so compared to PC OS, it's much more reliable for long time and heavy duty machining works. What's more, it has professional macro functions to support Auto Tool Changger, tapping and custom functions etc. It's time to upgrade from hobby CNC to real industrial CNC now!

SVM-2VMC can handle all materials from Plastic, Aluminium, Brass, Steel, Stainless Steel to Taitanium etc. It's a real industrial level CNC machine to do precision machining works. Typical machining tolerance is <0.02mm.

SVM-2VMC
is excellent for personal machinists, metal workshops, R&D departments, educations and batch product factories. We can also provide customized CNC controller installation like SIEMENS808D/Advanced, FANUC 0i series etc.

KEY FEATURES
High rigid cast iron machine frame
Over 500kgs aging-treated cast iron frame to prevent losing accuracy by time

Full linear ways and C3 class ground ballscrews for all 3 axis
HIWIN™ High precision class linear ways and C3 class ground ballscrews for all 3 axis / Z axis enhanced with heavy duty roller type linear ways

AC SERVO driving BT30 spindle system with Pneumatic PDB
Industrial precision BT30 spindle unit / High end AC SERVO spindle motor system

AC SERVO 3 axis driving system
AC SERVO motor system for all 3 axis / Run faster, more smoothly and never lose step

Real industrial 4 axis /5 axis CNC control system
Industrial CNC controller with Additional control panel / Compatible G code system / Full English operation&programming manuals

Full enclosure and integrated coolant&chip removing system
Industrial style full enclosure / Chip drand coolant system built in cabinet stand / Easy moving FOOT MASTER casters

2nd High speed engraving spindle (optional)
Special optional 2nd engraving spindle for precision 3D engraving works

Harmonic drive 4th/5th axis system (optional)
High accuracy, Zero backlash 4th/5th axis set attachable

BT30-ATC-12T is now available on SVM-2 (optional)
SKYFIRE own developped BT30-12T ATC system / Less weight, full linear ways, optimized for small CNC

Various optional installations, upgrades, tooling and accessories (Please refer to datasheet)
MPG, tool setters, BT30 tool holder series, machine tools etc.


QUALITY CONTROL

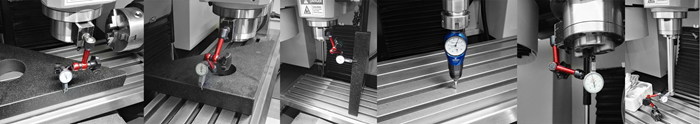

All SKYFIRE CNC machines will be tested on motion accuracy  and kept running over 72 hours after assembly.

REAL CUT TESTS
All machines will be applied with real cuts to exam machining accuracy before cleaning up, packing and shipment.


PACKAGE & SHIPMENT
All SKYFIRE CNC machines will be packed up with standard plywood crates to make sure safe transport.



We also provide CNC programming, client sample  test machining sevices to make sure customers can do right job with our machnes.


OPTIONS & TOOLING ACCESSORIES
Please refer to SVM-2 series DATASHEET for more machine options and high quality tooling accessories available. Order together with machine will save a lot for you!

KNOW MORE
More questions please refer to FAQ or directly email us for prompt answers: info@skyfirecnc.com

WARRANTY & SERVICES
We provide 12 month full free quality warranty and life long technology supports. Please review details in:
Warranty & Services document
